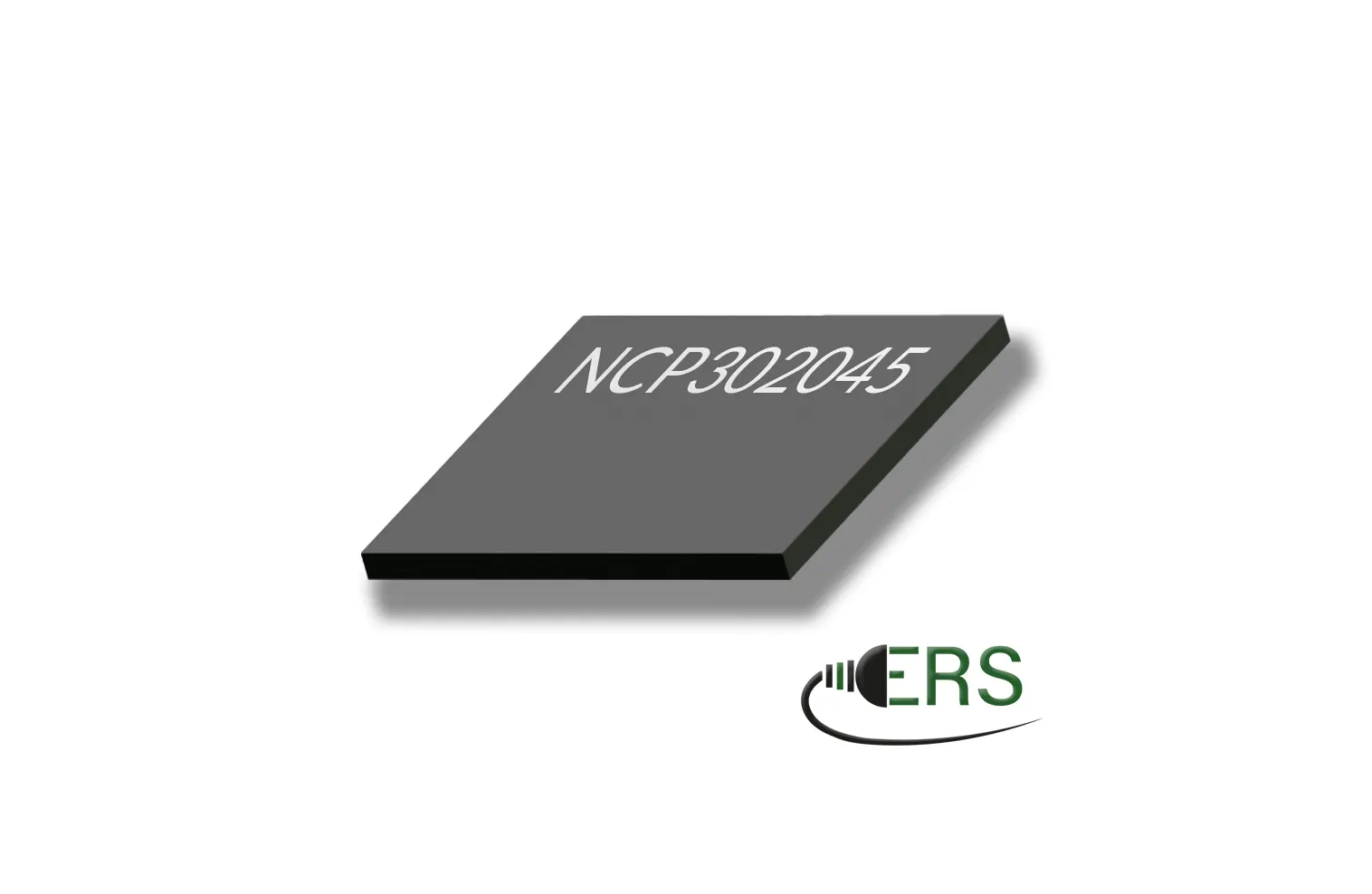

NCP302045

NCP302045

Integrated Driver and MOSFET

Description

The NCP302045 integrates a MOSFET driver, high-side MOSFET
and low-side MOSFET into a single package.
The driver and MOSFETs have been optimized for high-current DC−DC buck power conversion applications.
The NCP302045 integrated solution greatly reduces package parasitics and board space compared to a discrete component solution.

Features
• Capable of Average Currents up to 45 A
• Capable of Switching at Frequencies up to 2 MHz
• Capable of Peak Currents up to 75 A
• Compatible with 3.3 V or 5 V PWM Input
• Responds Properly to 3-level PWM Inputs
• Option for Zero Cross Detection with 3-level PWM
• Internal Bootstrap Diode
• Undervoltage Lockout
• Supports Intel® Power State 4
• Thermal Warning output
• Thermal Shutdown
